1.Water Pump Type
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Self-priming pump |
Centrifugal pump |
Axially split pump |
Mixed-flow pump |
Multi-stage pump |
Chemical pump |
Slurry Pump |
High pressure cleaning pump |
High-pressure plunger pump |
2.Product Introduction
3.Product Specification
| Pump Technical Parameters |
| Brand/Origin: Huaquan/Shandong |
Medium: Sewage |
| Pump Type: Self-priming Pump |
Shaft Power: 68 kW |
| Pump Model: ZW300-800-20 |
Suction Lift: 4-6 m |
| Rated Head: 20m |
Inlet Diameter: 300 mm |
| Rated Flow Rate: 800m³/h |
Outlet Diameter: 250mm |
| Diesel Engine Technical Parameters |
| Brand/Origin: YC/Guangxi |
Cooling Method: Closed-loop Water Circulation Cooling |
| Diesel Engine Model: YC4A140L-D20 |
Fuel Supply Method: Direct Injection |
| Diesel Engine Rated Power: 95kW |
Diesel Engine Overload Power:105kW |
| Displacement: 4.84L |
Speed Control Method: Electronic Speed Regulation |
| Number of Cylinders/Engine Structure: 4/L-type |
Intake Method: Turbocharged |
| Bore and Stroke: 108×132mm |
Overload Capacity: 110% |
| Starting Method: DC 24V electric start |
Rated Speed: 1500 rpm |

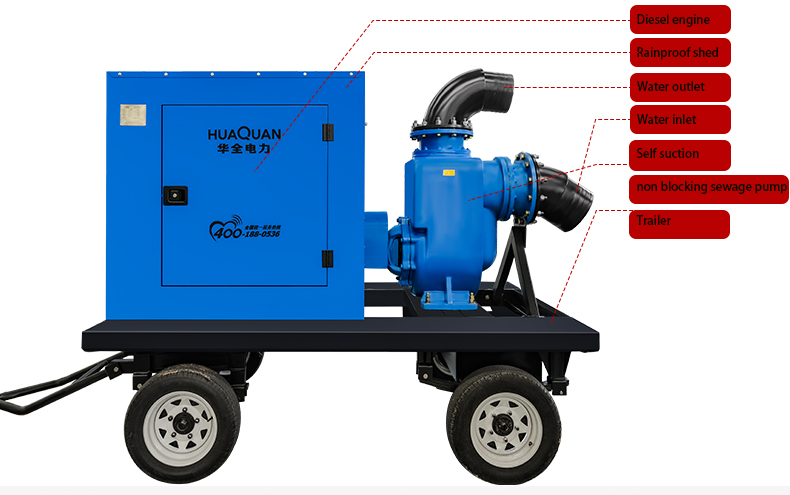

4.Appearance and Structure
 |
 |

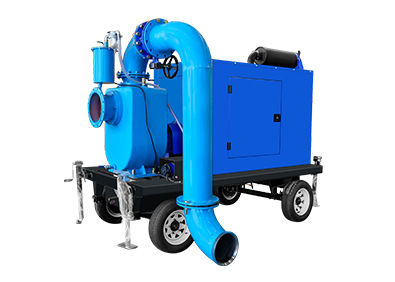

| Mobile |

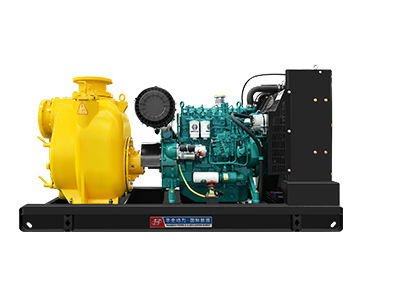

Open-frame |
5.Scope of Application
Self suction pumps are suitable for urban environmental protection, construction, fire protection, chemical, pharmaceutical, printing and dyeing, brewing, electricity, electroplating, papermaking, industrial and mining flushing, equipment cooling, etc.
6.Product Advantages
|
1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
|
 |
|
2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
|
 |
|
3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.
|
 |
|

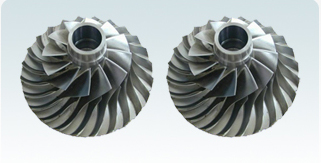

4.Thickened impeller, wide blade passage, good passability, achieving non clogging and sewage discharge performance.
|
 |
|
5.No water needs to be added, with the function of "one-time water supply, lifelong self-suction". There is no need to install a bottom valve in the pipeline, and the operation is simple.
|
|

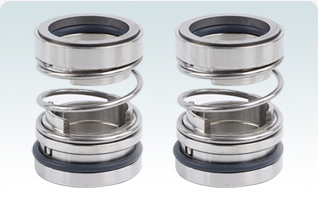

6.No leakage mechanical seal, safe and reliable without leakage, equipped with corrosion-resistant mechanical seal, can be used with confidence in acid and alkali media in chemical and pharmaceutical factories.
|
 |
|
7.Customer First: According to the working conditions, the corrosion-resistant and high-temperature resistant type, flow rate, and head can be customized privately.
|
