Flood control water pump _Centrifugal pump

Real time shooting of Huaquan Group's digital factory

1.Water Pump Type

Self-priming pump	Centrifugal pump	Axially split pump	Mixed-flow pump	Multi-stage pump	Chemical pump	Slurry Pump	High pressure cleaning pump	High-pressure plunger pump

2.Product Introduction

3.Product Specification

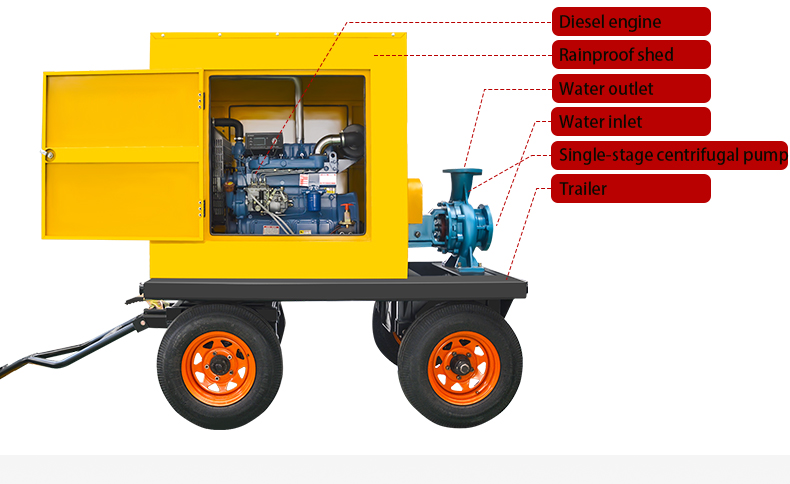

4.Appearance and Structure

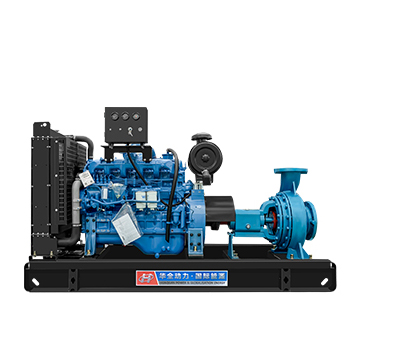

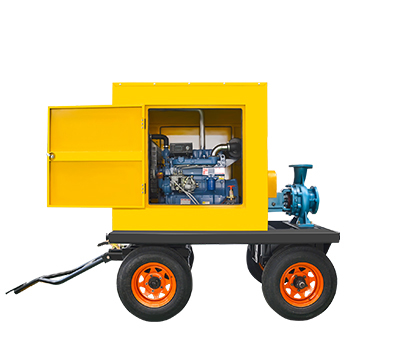

Mobile	Open-frame

5.Scope of Application

Characteristics of multi-stage pumps：Efficient and energy-saving, with a wide range of performance , safe and stable operation, low noise, long service life, installation and maintenance, etc

1、IS Horizontal clear water pump, used for conveying clear water and other liquids with physical and chemical properties similar to clear water, operating at a temperature t ≤ 80 ℃.

2、ISG Single stage centrifugal pump is optimized based on the characteristics of IS type pumps and combined with pipeline pumps. It is suitable for industrial and urban water supply and drainage, pressurized water supply to high-rise building water towers, firefighting pressurization, pipeline pressurization, long-distance water supply, heating and cooling circulation, and other occasions. T ＜ 80℃.

3、IR Horizontal hot water pumps are widely used in metallurgical, chemical, textile, papermaking, hotels, and other boiler hot water pressurized circulation transportation and urban heating systems, with an IR type operating temperature t ≤ 120 ℃.

4、IH Horizontal chemical pump is used for conveying liquids without solid particles, which are corrosive and have a viscosity similar to water. The operating temperature is -20 ℃ to+120 ℃.

5、ISW Horizontal pipeline oil pump is used to transport oil products such as gasoline, kerosene, diesel, or flammable and explosive liquids. The temperature of the medium being transported is -20 to+120 ℃.

6.Product Advantages

1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.
4.The IS and IR type horizontal single-stage single suction clean water centrifugal pump is an energy-saving pump jointly designed nationwide.

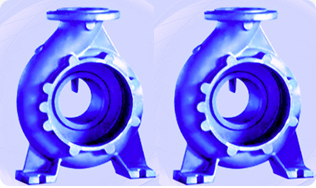

5.Simple structure, reliable performance, small size and light weight,Good anti cavitation performance, low power consumption, rear open design, no need to disassemble the suction and discharge pipelines when disassembling the pump cover and impeller, convenient for use and maintenance.
6.The multi-stage impeller has smooth flow channels, which can reduce water loss during operation, make greater flow and higher head.
7. A shaft sleeve is installed at the part where the shaft passes through the packing chamber to prevent shaft wear.

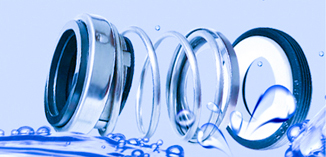

8.There must be an O-ring seal between the shaft sleeve and the shaft to prevent air intake or water leakage along the mating surface.

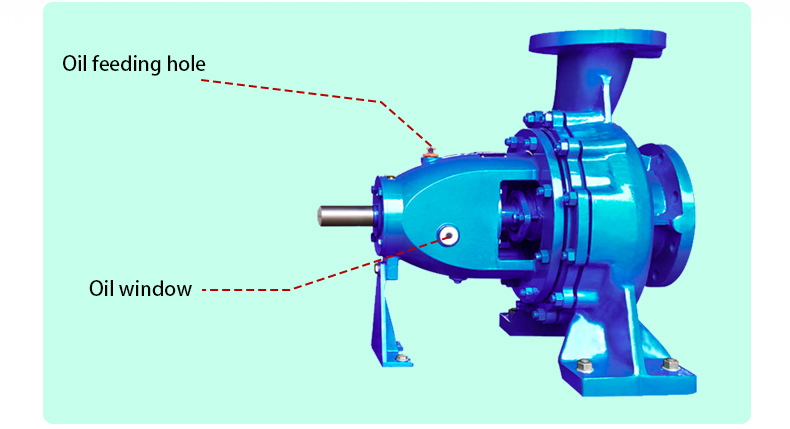

9.The IS pump is lubricated with oil, and the amount of oil added can be observed through the injection window mirror. During maintenance, simply remove the middle link of the extended coupling.
