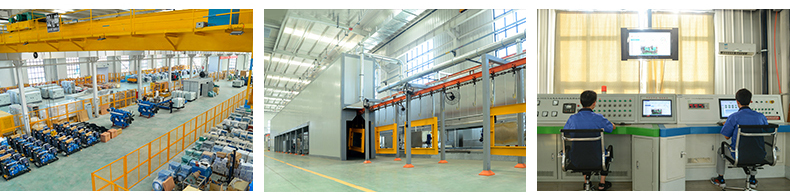

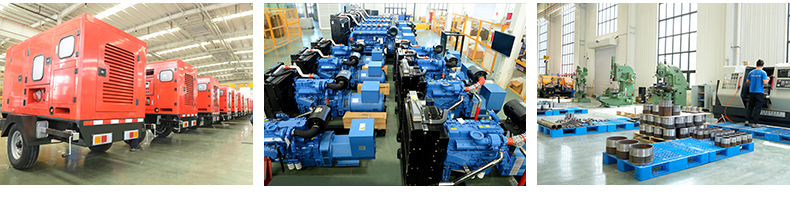

Real time shooting of Huaquan Group's digital factory
1.Water Pump Type
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Self-priming pump |
Centrifugal pump |
Axially split pump |
Mixed-flow pump |
Multi-stage pump |
Chemical pump |
Slurry Pump |
High pressure cleaning pump |
High-pressure plunger pump |
2.Product Introduction
3.Product Specification
| Pump Technical Parameters |
| Brand/Origin: Huaquan/Shandong |
Medium: / |

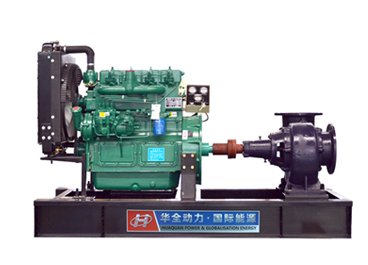

| Pump Type: Mixed Flow Pump |
Pump Model: 200HW-8 |
| Shaft Power: 9.6-9.39-9.41kW |
Suction Lift: 4-6m |
| Head: 9.6-8.0-6.0m |
Inlet Diameter: 200mm |
| Flow Rate: 270-360- 432m³/h |
Outlet Diameter: 200mm |

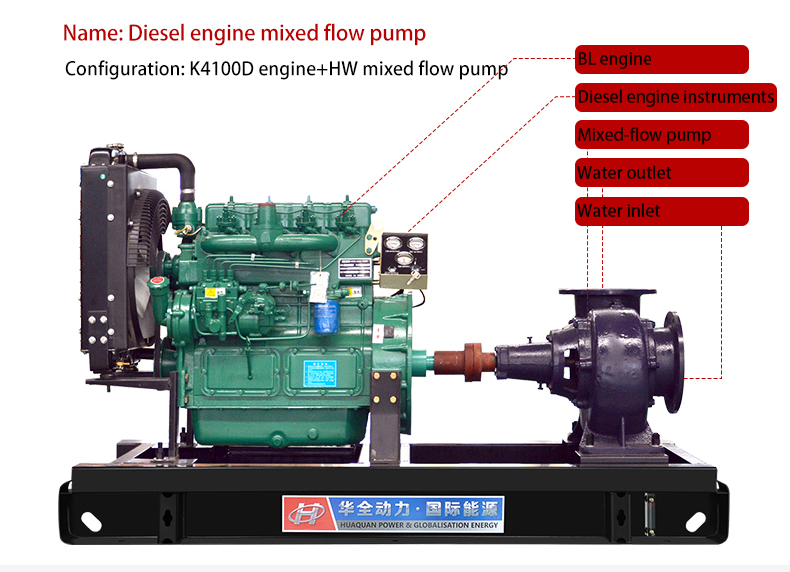

| Diesel Engine Technical Parameters |
| Brand/Origin: BL/Shandong |
Cooling Method: Closed-loop Water Circulation Cooling |
| Diesel Engine Model: K4100D |
Fuel Supply Method: Direct Injection |
| Common Diesel Engine Power: / |
Diesel Engine Standby Power: / |
| Displacement: / |
Speed Control Method: Mechanical speed regulation |
| Number of Cylinders/Engine Structure: 4/L-type |
Intake Method: Natural Aspiration |
| Bore and Stroke: 100×115mm |
Overload Capacity: 110% |
| Starting Method: DC 12V electric start |
Rated Speed: 1500 rpm |

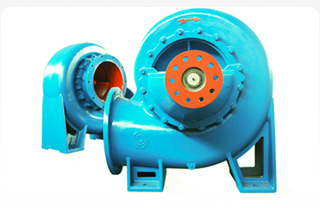

4.Appearance and Structure
 |
 |

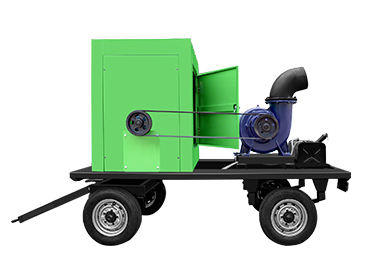

| Mobile |
Open-frame |
5.Scope of Application

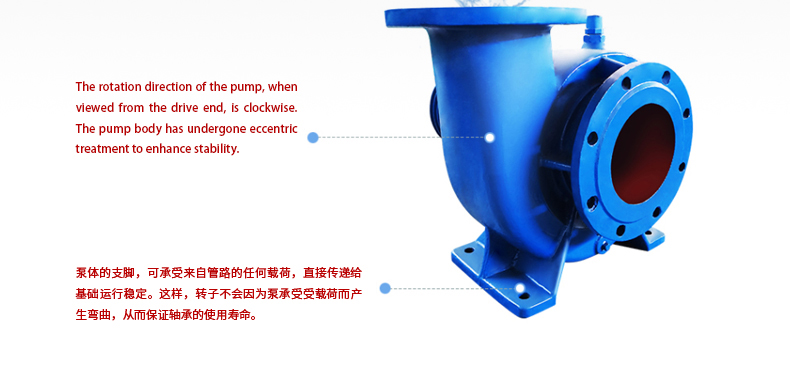

The HW pump is a horizontal, single-stage, single suction, and volute mixed flow pump. Suitable for transporting clean water or other liquids with chemical properties similar to water. The temperature of the transported liquid should not exceed 50 ℃. Widely used in various occasions such as agricultural irrigation, seawater aquaculture, forced circulation in chemical processes, urban gas engineering, industrial and urban water supply and drainage.
6.Product Advantages
| 1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements. |
 |

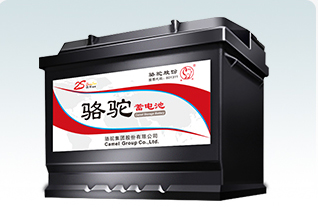

| 2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption. |
 |
| 3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant. |
 |
| 4.A mixed flow pump is a type of pump located between a centrifugal pump and an axial flow pump, which exerts both centrifugal force and axial thrust on the liquid，the flow channel is spacious, with a large flow area and a flow rate of up to 20000 cubic meters. |
 |
| 5.Precision machining, special treatment, stable operation, and durability. |
 |

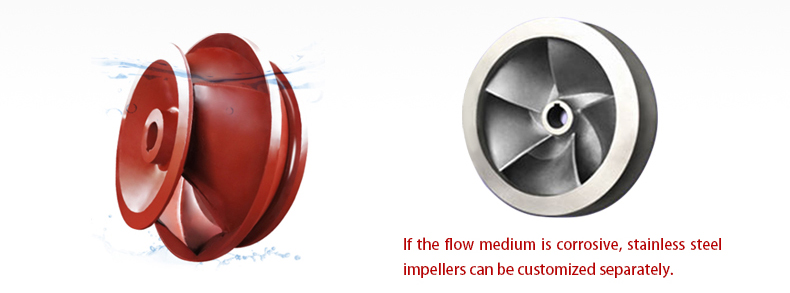

| 6.Cast iron thickened impeller, finely polished through three heat treatment processes, with smooth inner and outer surfaces, the blade passage is spacious, with good passability and no blockage. |
 |

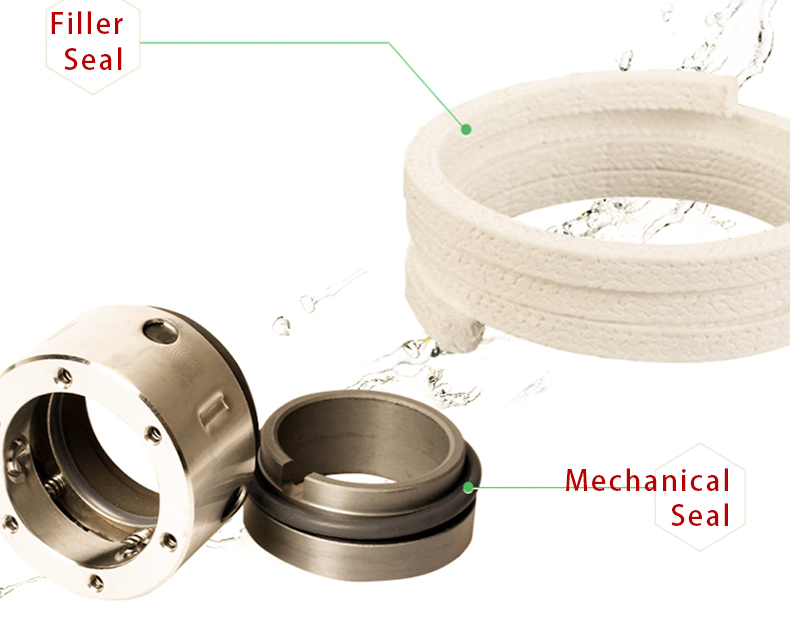

| 7.The shaft sealing method is packing seal or double end mechanical seal, ensuring high efficiency and no leakage during operation. |
 |

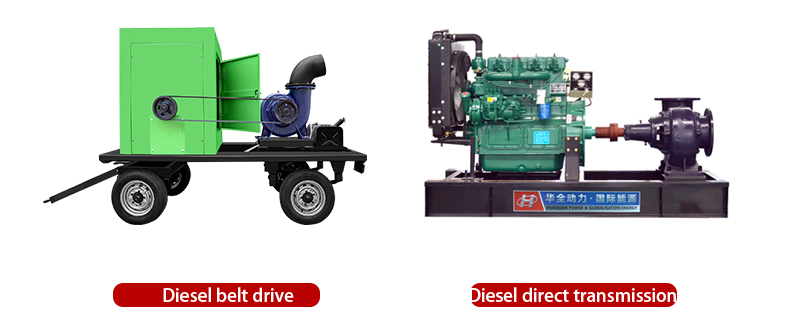

| 8.There are two types of diesel power transmission methods: diesel belt transmission and diesel direct connection transmission. |
 |
| 9.Customer First: According to the working conditions, the corrosion-resistant and high-temperature resistant type, flow rate, and head can be customized privately. |
