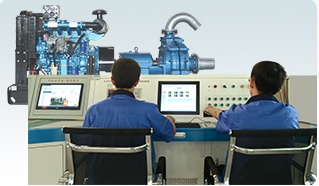

Real time shooting of Huaquan Group's digital factory
1.Water Pump Type
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Self-priming pump |
Centrifugal pump |
Axially split pump |
Mixed-flow pump |
Multi-stage pump |
Chemical pump |
Slurry Pump |
High pressure cleaning pump |
High-pressure plunger pump |
2.Product Specification
| Pump Technical Parameters |
| Brand/Origin: Huaquan/Shandong |
Medium: Sewage |
| Pump Type: Sewage Pump |
Shaft Power: / |
| Pump Model: 4PW |
Suction Lift: 4-6m |
| Rated Head: 25m |
Inlet Diameter: 100mm |
| Rated Flow Rate: 160m³/h |
Outlet Diameter: 100mm |
| Diesel Engine Technical Parameters |
| Brand/Origin: BL/Shandong |
Cooling Method: Closed-loop Water Circulation Cooling |
| Diesel Engine Model: ZH4100D |
Fuel Supply Method: Direct Injection |
| Common Diesel Engine Power: 34.5kW |
Diesel Engine Standby Power: / |
| Displacement: / |
Speed Control Method: Mechanical speed regulation |
| Number of Cylinders/Engine Structure: 4/L-type |
Intake Method: Natural Aspiration |
| Bore and Stroke: 100×115mm |
Overload Capacity: 110% |
| Starting Method: DC 12V electric start |
Rated Speed: 1500 rpm |
4.Appearance and Structure
 |
 |

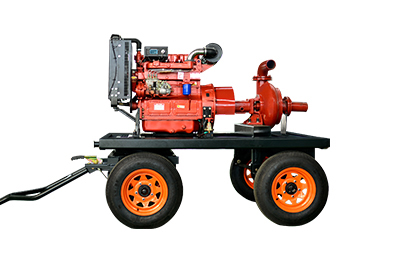

| Mobile |

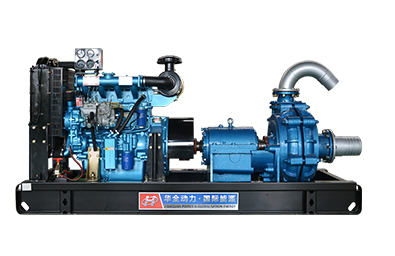

Open-frame |
4.Scope of Application
1· The PW type horizontal non clogging sewage pump can transport sewage, suspended solid particles, long fiber substances, and domestic wastewater. The pump body is made of high-quality cast iron material, and the medium temperature does not exceed 100 ℃
2 · PWF type corrosion-resistant sewage pump can transport sewage with acidic, alkaline or other corrosive properties
3· Industries such as chemical, petroleum, light industry, food, pharmaceuticals, brewing, environmental protection, and sewage treatment. The pump body and flow components are made of 304 stainless steel material, with a medium temperature not exceeding 100 ℃
5.Product Advantages
|
1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
|
 |
|
2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
|
 |
|
3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.
|
 |
| 4.PW and PWF sewage pumps are single-stage, single suction, cantilever centrifugal sewage pumps. The pump inlet is in the axial horizontal direction, and the pump outlet can be installed in a horizontal or vertical direction as needed for easy operation and use. |
| 5.The pump body is mainly composed of pump cover, pump casing, impeller, shaft seal, shaft, and bracket, which are installed on a common chassis with the engine. It is directly driven by the engine through an elastic coupling and has strong power. |
| 6.The shaft seal adopts a double end mechanical seal structure, and the pump body structure is designed reasonably, with advantages such as high efficiency, good energy-saving effect, smooth operation, reliable performance, and convenient maintenance. |
| 7.Customer First: According to the working conditions, the corrosion-resistant and high-temperature resistant type, flow rate, and head can be customized privately. |
