1.Water Pump Type

Self-priming pump	Centrifugal pump	Axially split pump	Mixed-flow pump	Multi-stage pump	Chemical pump	Slurry Pump	High pressure cleaning pump	High-pressure plunger pump

2.Product Introduction

3.Product Specification

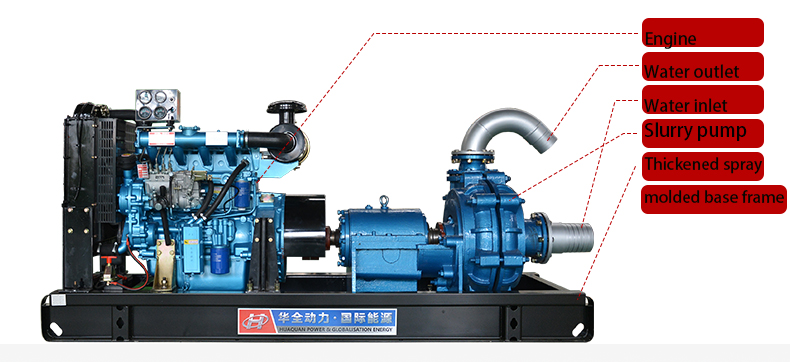

4.Appearance and Structure

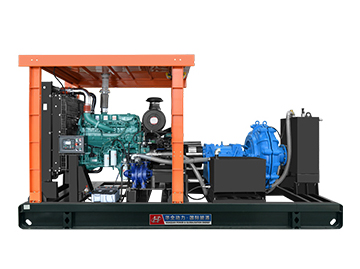

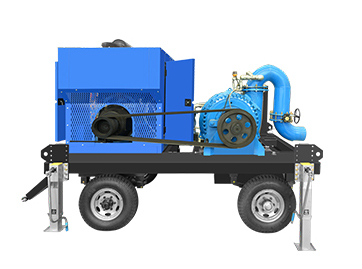

Mobile	Open-frame

5.Scope of Application

1.The ZJ series slurry pump is an efficient and energy-saving, single stage, single suction, centrifugal slurry pump suitable for industries such as power, metallurgy, coal, building materials, chemical industry, etc. It is mainly used to transport abrasive slurries containing solid particles, such as processing concentrate and tailings in ore preparation plants, ash removal in power plants, conveying coal slurry and heavy medium coal in coal preparation plants, and conveying slurry in coastal river mining operations. The maximum weight concentration that it can handle slurry is: 45% for mortar and 60% for mineral slurry; It can be run in series according to user needs.

2.The characteristics of AH and HH slurry pumps are single-stage single suction suspended wall horizontal centrifugal pumps, suitable for conveying liquids containing suspended solid particles such as concentrate, tailings, ash, coal slag, cement, soil, gravel, etc., with strong hardness, strong corrosion, and high concentration slurry in industrial sectors such as metallurgy, mining, coal, power, building materials, etc., The temperature of the transported solid-liquid mixture shall not exceed 80 ℃, and the weight concentration can reach 60%.

3.The GMZ series slurry pump is a single-stage single suction, axial suction cantilever horizontal centrifugal pump, which can be widely used in metallurgy, mining, power, desulfurization, coal mining, aerated concrete, water conservancy, chemical industry, light industry, petroleum and other departments to transport abrasive or corrosive slurries containing a large amount of solid materials.

4.The ZD mud pump is a horizontal centrifugal pump suitable for conveying liquids containing suspended solid particles (such as concentrate, tailings, coal slag, coal slurry, cement, soil, sand, etc.). The weight concentration of solid substances can reach 50-70%, and a small amount of large solid particles are allowed to pass through, but the particle size should not be larger than 80% of the small size of the flow section

5.The ZDL series vertical centrifugal slurry pump is generally immersed in the pool and can be used for supporting equipment of large flotation machines and control of flotation plant circuits.

6.The ZGB (P) series slurry pump is a new generation of slurry pump with high flow rate, high head, and multi-stage series connection. This series of slurry pumps are all cantilever, horizontal, single-stage, and single suction centrifugal slurry pumps. Within the allowable pressure range, it can be used in multiple stages in series, with a maximum allowable working pressure of 3.6 MPa.

6.Product Advantages

1.Strict ex-factory standards:Each machine undergoes full trial operation before leaving the factory, and is equipped with a product qualification certificate and quality assurance after meeting the requirements.
2.Large capacity maintenance free battery，Camel brand, starting at -30 ℃ low temperature, with good conductivity and low self-consumption.
3.Thickened "C-shaped" bending base, Fully automatic spray molding technology processing, corrosion-resistant and rust resistant.
4.Humanized design: The water outlet can be installed and used by rotating eight different positions at intervals of 45 ℃. The pump casing adopts a vertical open design, which is convenient for maintenance.

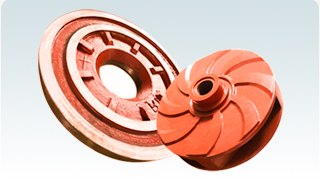

5.High chromium alloy overcurrent components with high wear and corrosion resistance efficiency.

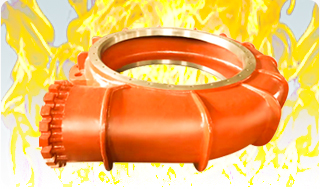

6.The channel is spacious, which is conducive to the passage of large solid particles. The pump body adopts an inner and outer double-layer metal structure, and each metal component has undergone three heat treatments of annealing, normalizing, and tempering, with a stable structure and strong corrosion resistance.
7.Mechanical seal and packing seal ensure efficient operation of the pump body without leakage.
8.Customer First: According to the working conditions, the corrosion-resistant and high-temperature resistant type, flow rate, and head can be customized privately.
